OPTIMAL SOUND INSULATION
FOR ALL AREAS
FOR ALL AREAS
Lightweight construction for lowering the noise level
Noise protection means that people have to be protected from sources of noise in their homes, environment and workplace. The noise events can be of a varying nature and are perceived more or less intensively. They include, for example, induced noise from people and machines as well as equipment, traffic, building sites, events, etc.
The ultimate goal of noise protection is to protect health by reducing noise as a stress factor to a bearable minimum in order to maintain performance and concentration and to increase comfort in the home and at work.
Our product Cisilent Type L lends itself as an acoustic solution here; it is used on scaffolding areas to dampen airborne sound. The system can also be used as a dust protection wall and sight screen. Cisilent Type L is suitable for use as temporary noise protection walls both outdoors and in closed rooms. The support structure consists of modular scaffolding or structures manufactured by the customer.

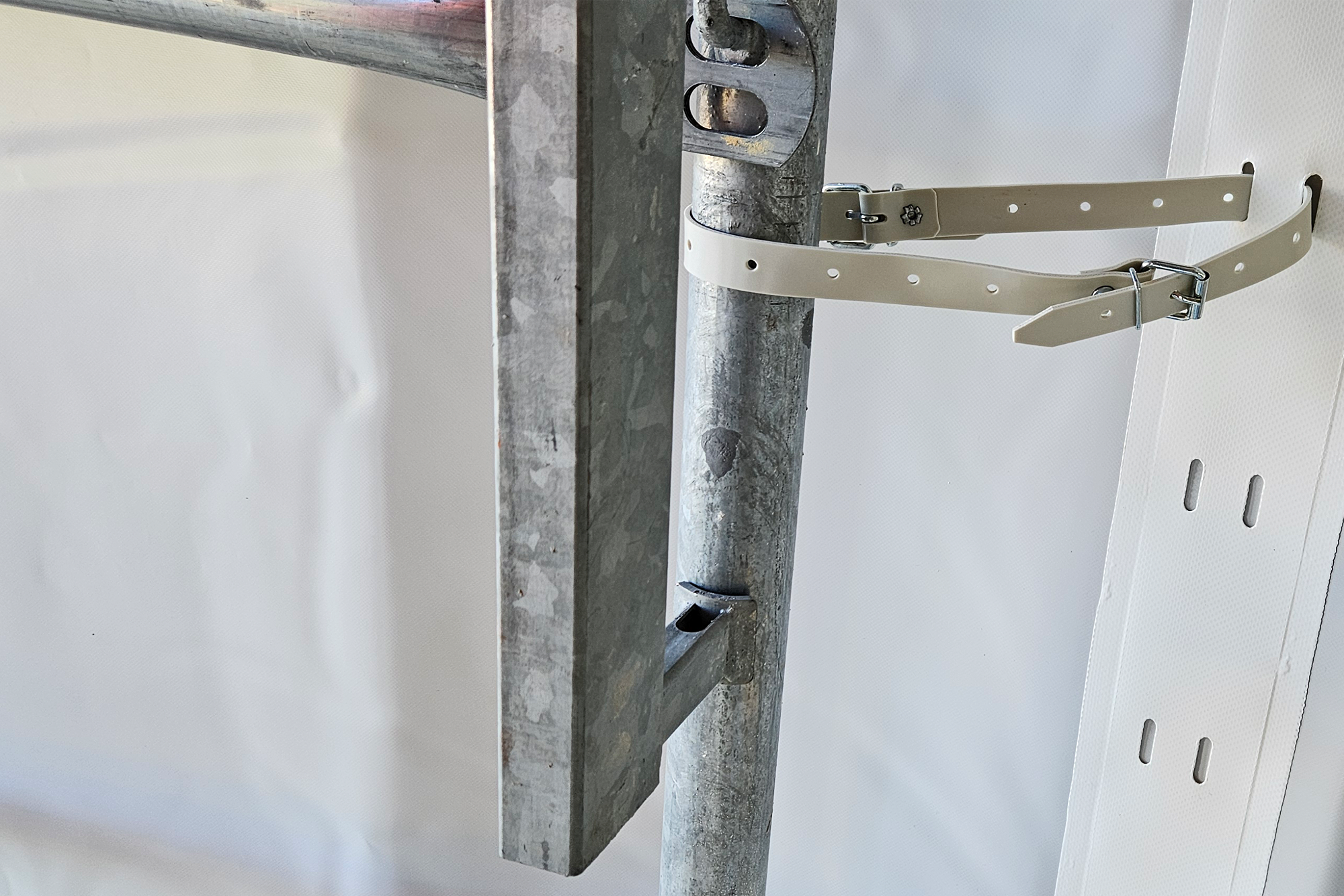

The closed top layers of Cisilent Type L limit the passage of sound and one top layer serves as a carrying layer for loop tapes, with which the system is fastened to the support structure. For the success of the noise reduction measure it is of little importance which side faces the noise source.
Cisilent Type L is the economical variant of the proven Cisilent Type E noise protection system and offers a similar decibel reduction, but with only half the weight.
The ultimate goal of noise protection is to protect health by reducing noise as a stress factor to a bearable minimum in order to maintain performance and concentration and to increase comfort in the home and at work.
Our product Cisilent Type L lends itself as an acoustic solution here; it is used on scaffolding areas to dampen airborne sound. The system can also be used as a dust protection wall and sight screen. Cisilent Type L is suitable for use as temporary noise protection walls both outdoors and in closed rooms. The support structure consists of modular scaffolding or structures manufactured by the customer.
The closed top layers of Cisilent Type L limit the passage of sound and one top layer serves as a carrying layer for loop tapes, with which the system is fastened to the support structure. For the success of the noise reduction measure it is of little importance which side faces the noise source.
Cisilent Type L is the economical variant of the proven Cisilent Type E noise protection system and offers a similar decibel reduction, but with only half the weight.
SOLUTION FOR NOISE CONTROL
Description, application

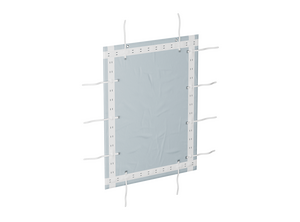

The lightweight textile construction, which is approx. 1 cm thick and weighs approx. 3 kg / m², is made of high-strength polyester fabric. It consists of three layers connected to each other by a surrounding fastening edge to make it watertight.An additional layer of varnish protects the to top coating from dirt and micro-organisms. The filling with an acoustic PE foam increases the sound insulation level to Rw (C; Ctr) = 20 dB.
Cisilent Type L has been optimised for use as a temporary noise protection measure. For rental purposes, each unit is set at half the size of a scaffolding bay, meaning that transportation and assembly on the scaffolding can be accomplished by one person. Cisilent Type L can also be manufactured for sale in project-related unit sizes.
Application areas include, for example, moving roadworks, temporary events, room divisions or demolition work.
