GRANDAIRE

THE PROJECT AND ITS REQUIREMENT

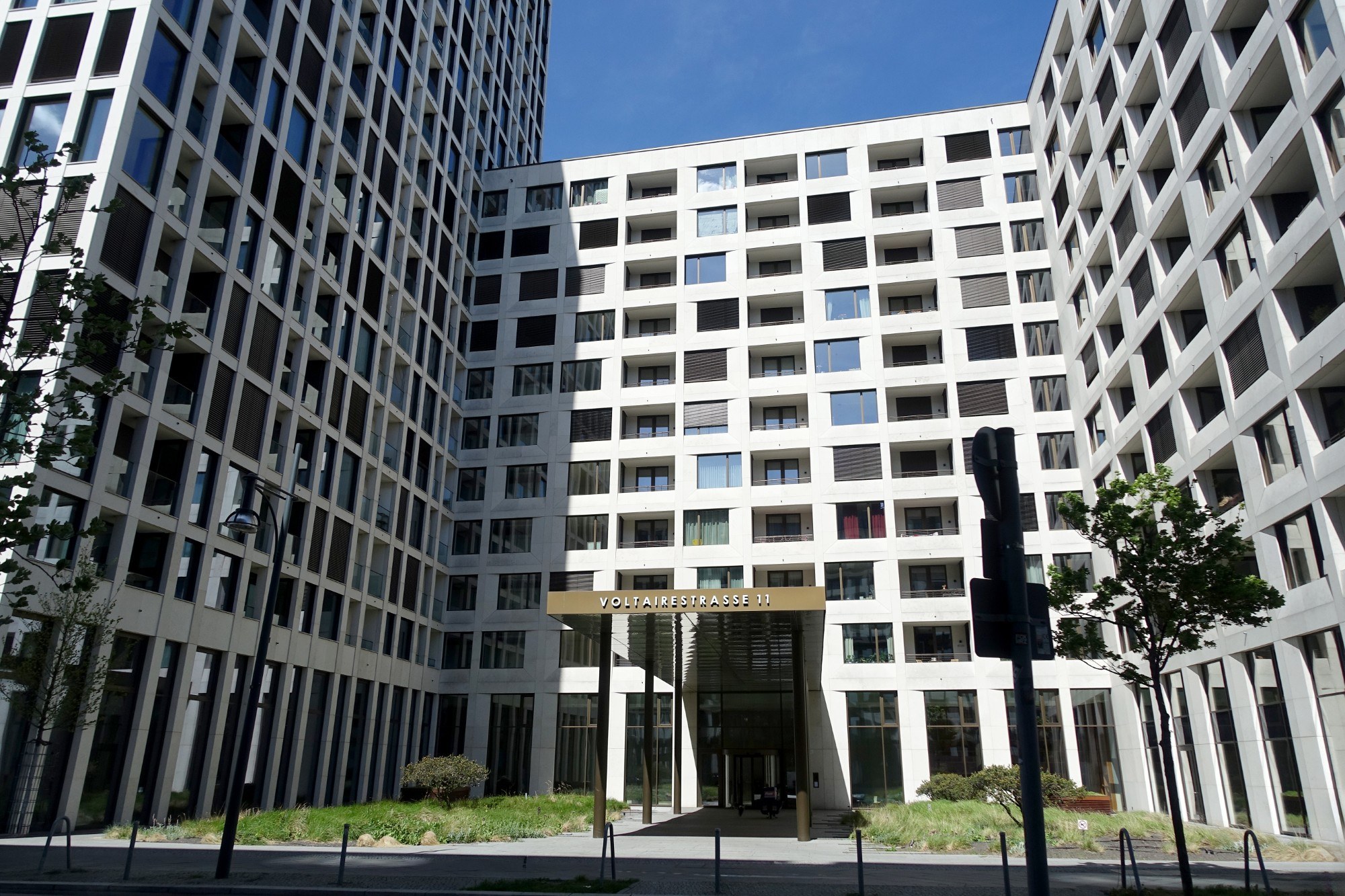

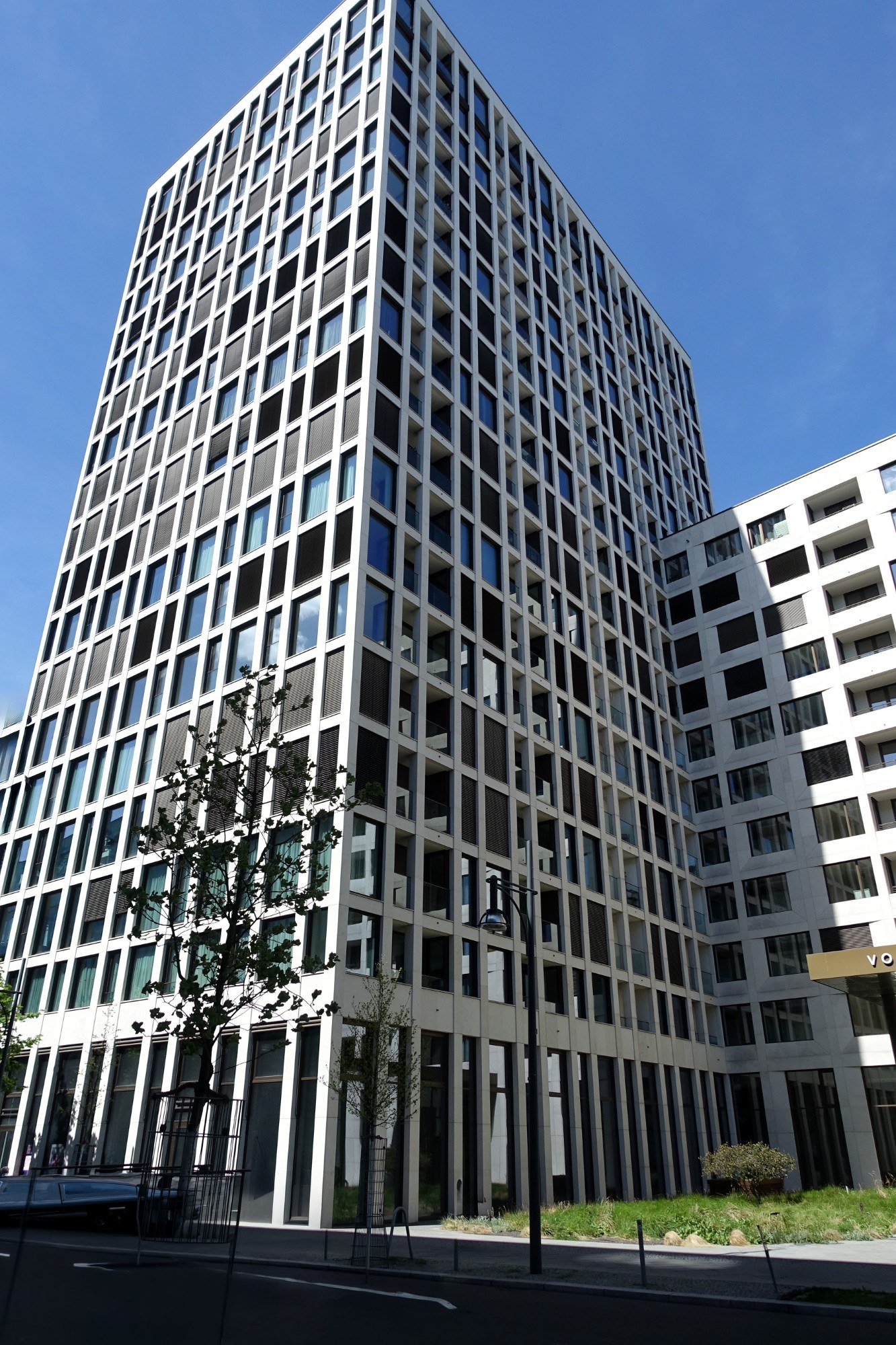

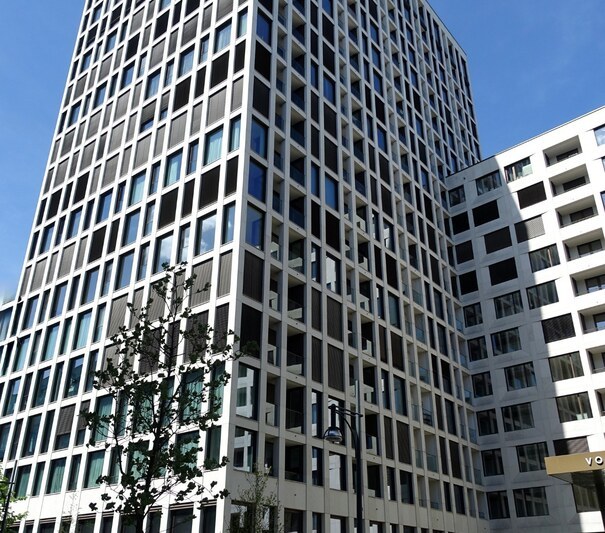

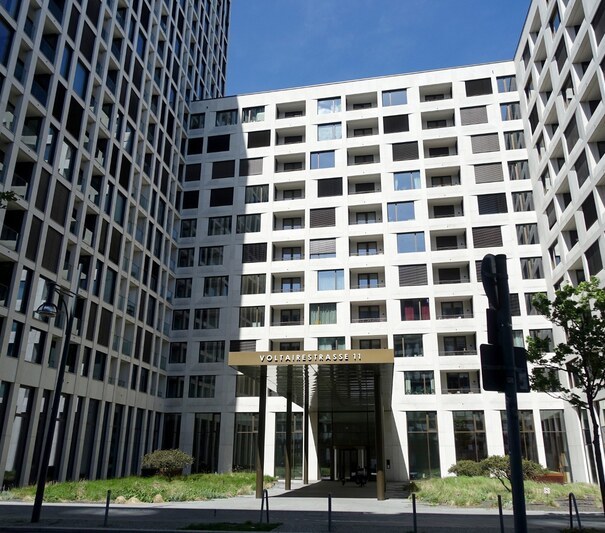

The Grandaire multistory building is a residential building in Berlin-Mitte, near Alexanderplatz. It consists of two towers which are 65 m or 40 m high and connected by a lobby. The towers comprise 164 individually owned apartments, 105 apartments for rent and shops on the ground floors. There are two underground parking levels
in the building basement. There is a subway line in approx. 20 m distance and a railway viaduct in approx. 50
m distance.

The project required the development of an economical elastic support of a part of the building complex (no support of the complete building) to protect the building against vibrations and secondary airborne noise immission from near railway traffic that is supposed to effect the building.

THE SOLUTION

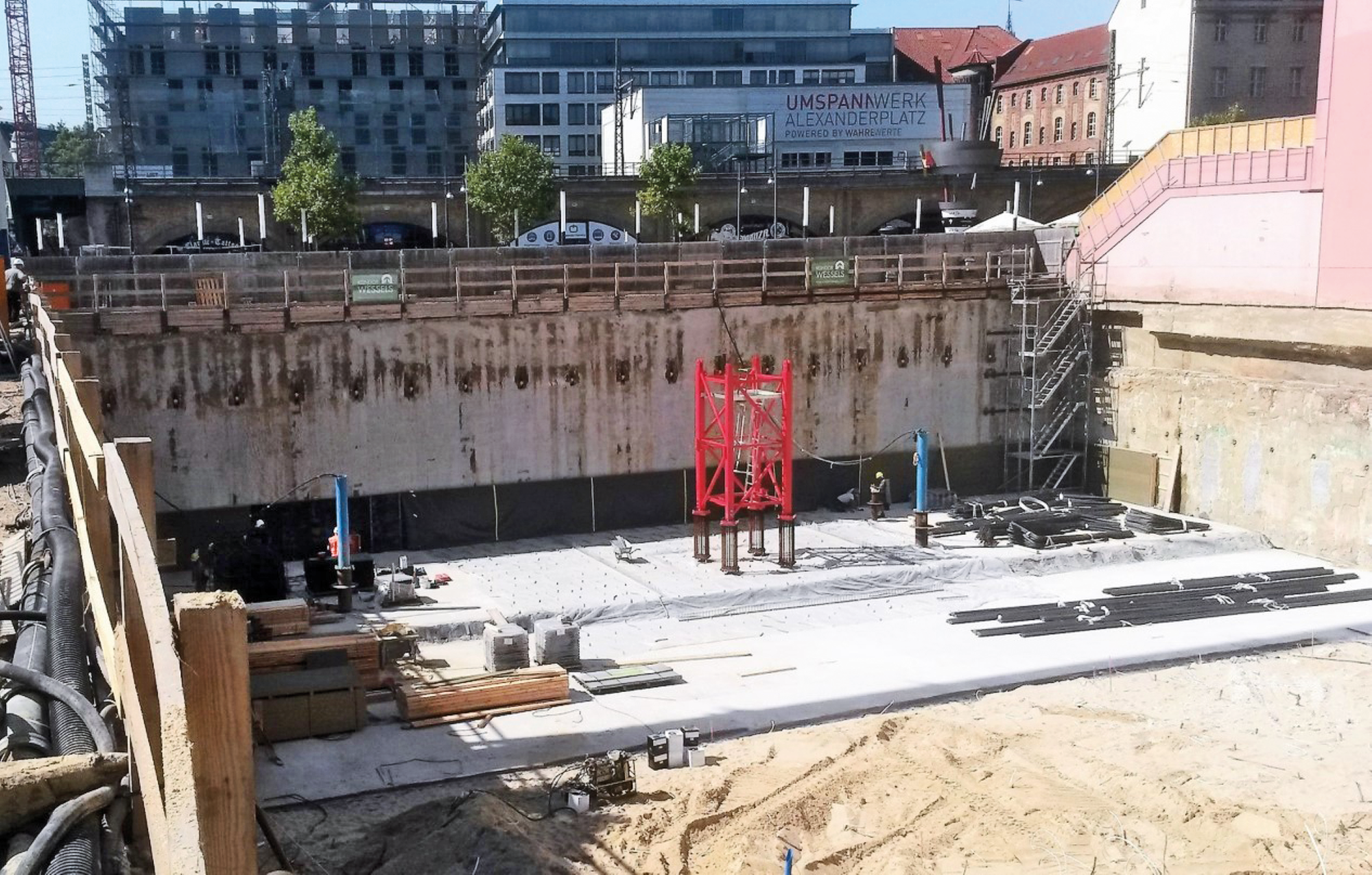

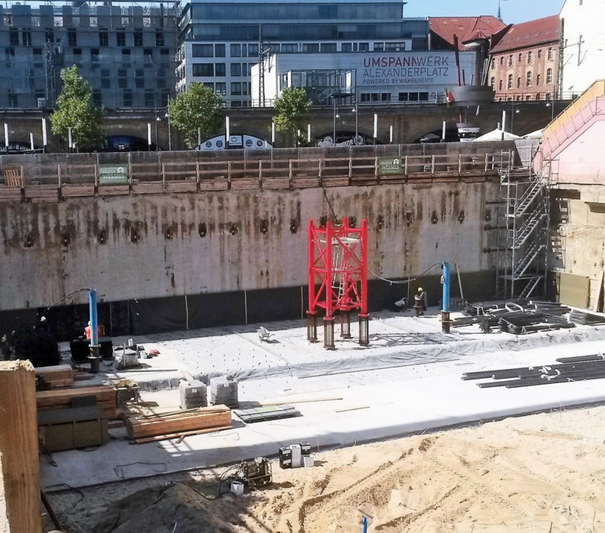

Calenberg carried out a technically high effective and at the same time economical solution using the bearing types Civerso and Cibatur. These bearing types were applied to the tower wall and the foundation of the tower wall within an area of the building most affected by vibrations, beginning at the 9 m deep foundation level and ending at ground level.


The benefits:

• Economical elastic support only of a part of the building
• Increased value of the building because of better living quality for its residents
